Graphic Solutions Range

Max printing area

12.48" x 18.26" (317 x 464 mm) maximum

Sheet size

13" x 19" (330 x 482 mm) maximum

Media thickness

Thickness 3 to 16 pt. (70 to 400 microns), Thick Substrate Kit - Paperboards up to 22 pt. (550 microns/650gsm)

Media range

Paperboards (white and colored), metalized and synthetic (PVC, PP, PET)

Available Colors

Supports Upto 5 Colors, CMYK-OVG, White & more

Printing speed

120 four-color 8.5 x 11 (A4) pages per minute-two-up 160 color 8.5 x 11 (A4) pages per minute in EPM-two-up 240 two-color or monochrome 8.5 x 11 (A4) pages per minute-two-up

Max printing area

29.1" x 20.1" (740 x 510 mm) maximum

Sheet size

Maximum sheet size: 29.5" x 20.81" (750 x 530mm)
Minimum sheet size: 20.1" x 11.7" (510 x 297mm)

Media thickness

Thickness 3-18 pt. (75-450 microns)
Thick substrate kit up to 24 pt.(600 micron)

Media range

Paperboards (white and colored), metalized and synthetic (PVC, PP, PET)

Available Colors

Supports Upto 7 Colors
CMYK-OVG, Premium White,
Photo Speciality inks, Fluorescent inks & more

Printing speed

3450 sheets per hour in 4 color mode
4600 sheets per hour in EPM 3/0

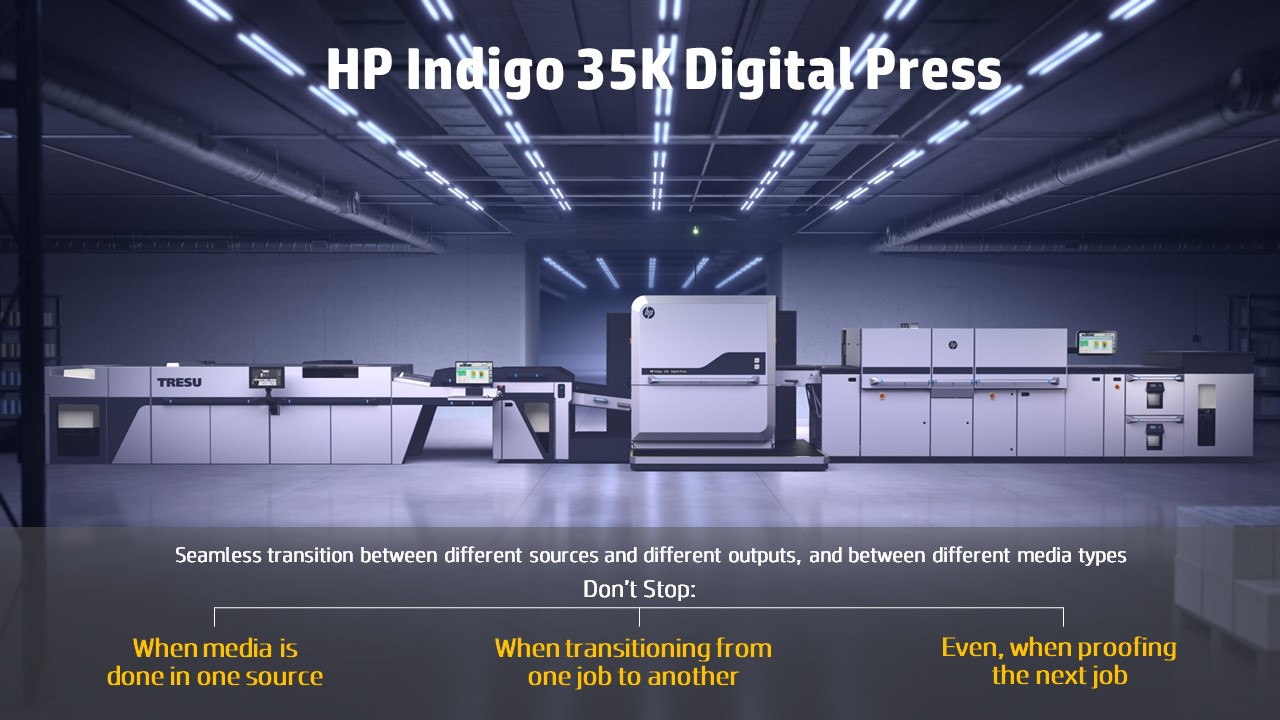

Max printing area

29.1" x 20.1" (740 x 510 mm) maximum

Sheet size

Max: 750 x 530 mm | 29.92”x 20.87”
Min: 510 x 297 mm | 20.08”x 11.69”

Media thickness

250-600mic | 10-24pt (150-250mic) | 6-10pt
(pre-primed paper)

Media range

Paperboards (white and colored), metalized and synthetic (PVC, PP, PET)

Available Colors

Supports UP to 7 Colors - CMYK-OVG-Spot for 97% of pantone Premium White, UV inks, Yellow, Taggant & more

Printing speed

3,450 sheets/hour in 4 color mode
4,600 sheets/hour in Enhanced Productivity Mode (EPM)

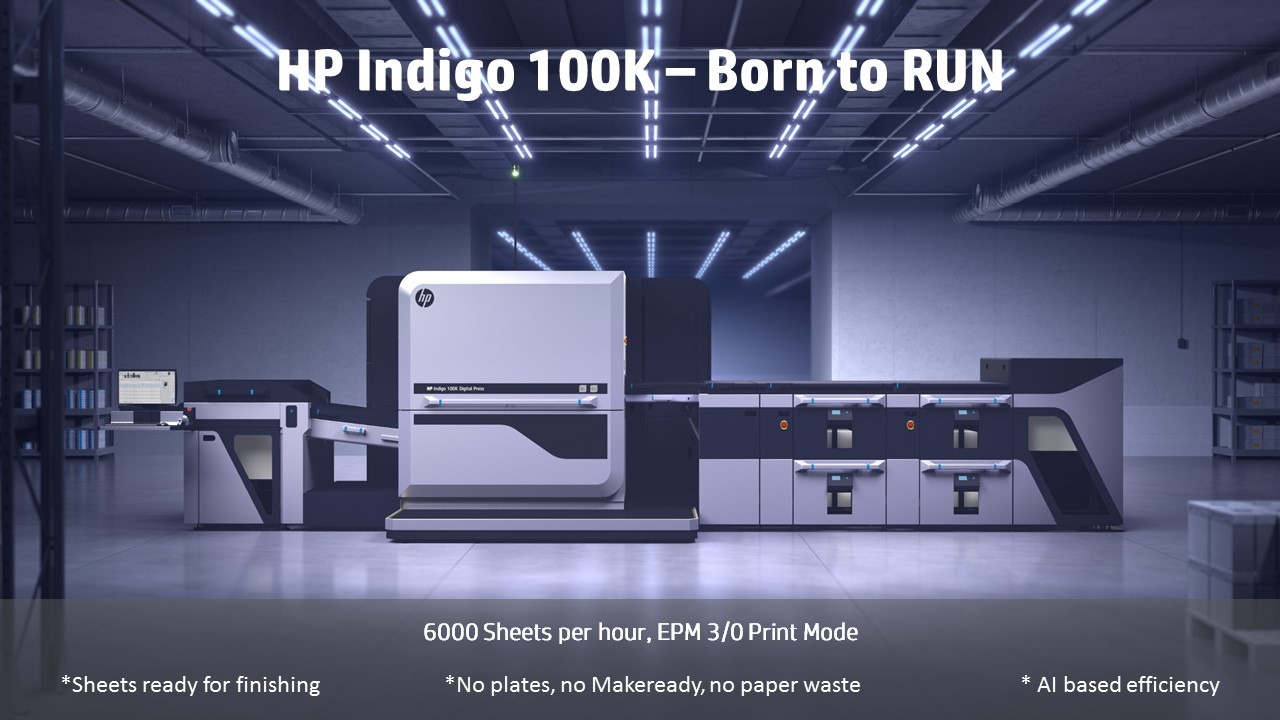

Max printing area

740 x 510 mm maximum

Sheet size

Maximum sheet size: 750 x 530 mm
Minimum sheet size: 510 x 330 mm

Media thickness

Thickness: 75 to 450 microns
Uncoated media: 70 gsm to 400 gsm
Coated media: 90 gsm to 400 gsm

Media range

Paper Boards - Coated & Uncoated

Available Colors

Supports Only 4 Colors
Cyan, Magenta, Yellow, and Black

Printing speed

4500 sheets per hour in 4-color mode 4/0
6000 sheets per hour in Enhanced Productivity Mode (EPM) 3/0

Max printing area

12.59" x 38.58" (320 x 980 mm) maximum

Reel size

Max. width: 13.39 in (340 mm)
Min. width: 7.87 in (200 mm)

Media thickness

0.5 to 18 pt. (12 to 450 microns)

Media range

Pressure-sensitive label stock, paper, unsupported films, and paperboard

Available Colors

Supports UP to 7 Colors, CMYK-OVG, White, Premium White, White for Sleeves
Fade Resistant Yellow, Fade Resistant Magenta,
Fluorescent Pink/Yellow/Orange/Green,
HP Indigo Invisible ElectroInks (Yellow/ Blue/Red/Green)
HP Indigo ElectroInk Silver & more

Printing speed

Up to 98 ft/min (30m/min) in 4-color mode
Up to 130 ft/min (40m/min) in Enhanced Productivity Mode
Up to 196 ft/min (60m/min) in 1-or 2-color mode

Max printing area

12.32" x 38.58" / 313 mm x 980 mm

Reel size

Max. width: 13.39 in (340 mm)
Min. width: 7.87 in (200 mm)

Media thickness

12-450 micron (0.5-18 mils)

Media range

Self-adhesive label stock, paper, unsupported films and paperboard

Available Colors

Supports UP to 7 Colors, CMYK-OVG, White, White, Premium White, Fade Resistant Inks, Fluorescent Inks, UV Inks, Silver & more

Printing speed

296 feet / 60 meters per minute in 4-color mode
260 feet / 80 meters per minute in Enhanced Productivity Mode(EPM)

Max printing area

29.37"x 44.09" (746 x 1120 mm)

Reel size

Maximum width: 30 in (762 mm)
Minimum width: 15.75 in (400 mm)

Media thickness

0.4 mil to 16 mil/ 0.4pt to 16pt (10 to 400 microns)

Media range

Film (PET, BOPP, PE, BOPA), Shrink film (PETG, PVC, OPS)
Label stock (PE label), Pre-laminates (PET/ALU/PE) & Paper

Available Colors

Supports UP to 7 Colors, CMYK-OVG, White, Premium White, Fade Resistant Inks, Fluorescent Inks, UV Inks, Silver & more

Printing speed

101 ft./min (31 m/min) in 4-color mode
138 ft./min (42 m/min ) in EPM
82 ft./ min (25 m/min ) in 5-color mode
